With the acceleration of urbanization and the improvement of human living standards, the amount of urban solid waste continues to rise, and landfill is still one of the main means of treating domestic waste in most cities. However, during the landfill process, methane produced by anaerobic decomposition of organic waste not only puts pressure on the ecological environment, but also becomes a safety hazard that cannot be ignored in landfill operations due to its flammable and explosive physical properties. To this end, building a scientific, efficient, and rapid-response methane leakage emergency mechanism has become an important strategic direction to ensure the safe operation of landfills.
1. Real Challenges Of Methane Leakage Risks

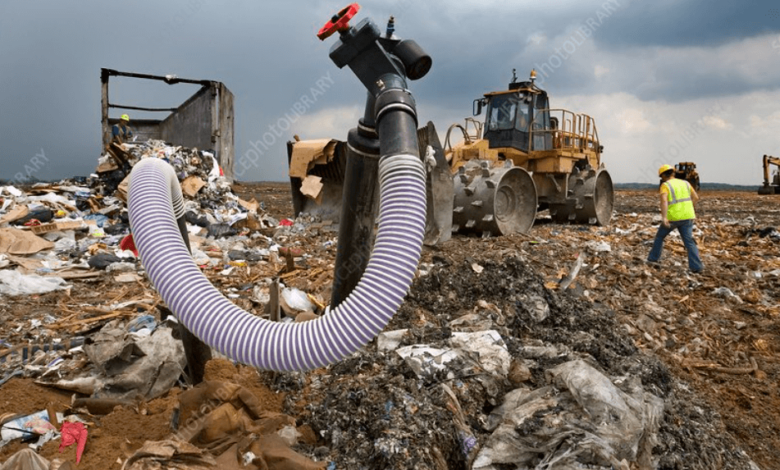

During the landfill process, especially mixed domestic waste that has not been effectively pretreated, methane gas will continue to be produced in an anaerobic environment. These gases are usually collected and discharged through gas wells or exhaust pipes, but once the drainage system is blocked, soil settlement causes cracks, the sealing layer leaks, or the equipment fails, methane may accumulate in a closed space.
Methane has a wide range of explosion limits (5%-15% volume fraction) and is lighter than air, so it is easy to rise to the ground along cracks, wellheads, or pipelines. If exposed to open flames or static electricity without human monitoring, it may cause an explosion. In addition, methane has a strong greenhouse effect, and its residue in the atmosphere will have a long-term impact on regional air quality and climate systems. Based on this, traditional fixed-point sampling and inspections can no longer meet the needs of risk prevention and control in modern landfills.
See also: How Will the Integration of AI Change How We Interact with Wearable Technology?
2. Key Components Of The Rapid Response Mechanism
A mature methane leak rapid response mechanism must form a closed loop from the three aspects of “front-end monitoring, process linkage, and back-end disposal” to achieve “early detection, fast response, accurate positioning, and high efficiency” in sudden leaks.
① Early warning front end: sensitive and reliable monitoring system
In the emergency mechanism, the perception system is the first checkpoint to trigger the response. In recent years, the widespread application of TDLAS methane detection technology has provided landfills with high-precision, low false alarm rate gas monitoring methods. Such equipment can support continuous online monitoring, has rapid response capabilities, and can detect small concentration changes within milliseconds, which is far superior to traditional thermal conductivity, electrochemical and other sensing technologies.
More importantly, this type of equipment can adapt to the complex terrain environment of landfills, which is humid, dusty, and prone to sedimentation, and has strong anti-interference ability and long-term operation stability. It can be deployed around the gas well, the boundary of the site, the operation area or the key nodes of the drainage system, and transmit data to the monitoring platform in real time through the wireless network, providing first-hand information support for the entire rapid response mechanism.
② Linkage middle platform: data fusion and intelligent judgment
In order to break the limitations of the previous “data island”, the rapid response mechanism must use the information platform to achieve multi-source data fusion and collaborative control. Modern landfills generally use intelligent monitoring platforms to integrate key parameters such as methane concentration, wind speed and direction, temperature, pressure, and soil moisture.
Dynamic threshold warning logic can be set in the platform, which not only triggers an alarm when the concentration exceeds the limit, but also identifies “trend anomalies”, such as a rapid increase in concentration in a certain area in a short period of time, which may indicate potential leakage even if it does not exceed the standard. The platform can also automatically associate the geographic information system (GIS) and emergency plans. Once the alarm is triggered, it will immediately generate an accident hotspot map and diffusion prediction map, and push them to the on-duty personnel’s mobile phone or control center.
③Response backend: rapid disposal process and equipment dispatch
The core of rapid response is “time racing”. Traditional emergency response often faces problems such as long response chain, delayed information transmission, and unclear responsible persons, which delays the initial disposal time. Modern emergency mechanisms should adopt a modular response process design, covering steps such as blockade, investigation, evacuation, and repair. Each step clearly defines the responsible person, response time, and resource allocation.
For example, once the platform alarms, the system can immediately issue a command to a specific emergency team to dispatch on-site operators, drones, and portable laser detectors to work together. Drones can fly to the warning area within minutes, conduct three-dimensional scanning, and locate the source of the leak. On-site personnel carry handheld detection equipment for microscopic confirmation to find problems such as pipeline damage, gas well blockage, or soil rupture. The entire response process is automatically recorded by the system for subsequent analysis and optimization.
3. The Role And Advantages Of Advanced Detection Equipment In The Response Mechanism
In the above mechanism, methane detection equipment plays a vital bridging role. In particular, equipment using TDLAS technology has the following key advantages:
Remote non-contact detection: Directional long-distance detection of methane can be achieved through infrared laser beams, without direct contact with the gas, which improves the safety of detection.
High sensitivity and fast response: It can identify changes in methane concentration at the ppmv level, with a reaction time of less than 100 milliseconds, and leaks can be discovered at the first time.
Mobile and flexible deployment: It can be integrated into a tripod, patrol robot or drone platform to achieve static and dynamic monitoring fusion.
All-weather operation capability: It can adapt to typical environmental conditions of landfills such as day and night temperature differences, rain erosion, and dust pollution, and operate stably and reliably.
Automatic data upload and fusion: The supporting software platform supports the linkage management of multiple devices, automatically uploads data to the cloud, and realizes unified information scheduling.
These features make advanced detection equipment not only the “sentinel” in the emergency system, but also a technical engine to promote the intelligent upgrade of the entire response system.
4. Conclusion and Development Prospects
Landfill methane leakage accidents are characterized by strong suddenness, wide impact, and great difficulty in control. Therefore, building a scientific, systematic, and efficient rapid response mechanism is an important part of the landfill safety management system. With the continuous evolution of the new generation of methane detection technology, the future emergency response mechanism will also develop in the direction of “automatic perception-intelligent early warning-refined response-visualized evaluation”.
In this process, methane detection equipment with high sensitivity, high reliability, and remote deployment capabilities will continue to play an indispensable role and become a powerful assistant for landfills to move towards intrinsic safety and intelligent management.
