The Manufacturing Bottleneck
Tooling is the spine of every manufacturing system. Whether the task is to create polymer enclosures, metal brackets, or precision-cast aerospace parts, the tools behind those products dictate cost, quality, and turnaround time. Historically, creating the molds, dies, jigs, and fixtures needed to fabricate parts has been the slowest, most resource-intensive phase of production. In traditional settings, injection mold tooling could take months to produce, often stalling innovation and increasing capital lock-up.
The rise of rapid pattern and tool making is changing that calculus.
A Revolution in Production Speed
Rapid tooling methodologies now offer engineers an alternative: functional tools delivered in days, not months. These technologies encompass a diverse range of applications—from silicone molds for resin casting to composite end effectors for robotic arms. Instead of waiting weeks for machined dies, manufacturers can deploy 3D-printed patterns, cast resins, and vacuum-formed tools in a fraction of the time.
This shift is not simply a matter of convenience. In industries like aerospace, automotive, and medical devices, compressed timelines directly correlate with greater design freedom, faster iteration cycles, and leaner inventory.
Inside the Toolkit: Materials and Methods
One of the key advantages of modern pattern and tooling systems is their material flexibility. Epoxy and silicone molds are ideal for small-batch urethane casting, offering turnaround in three to five days and the ability to reuse molds for dozens of cycles. These materials also outperform 3D-printed molds on cost and thermal resilience.

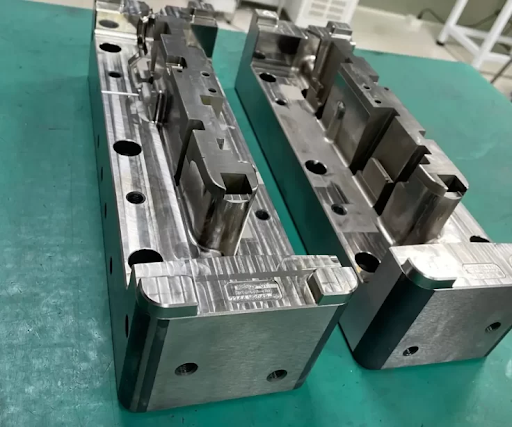

Injection molds, while traditionally associated with long timelines and high costs, are now accessible on shorter schedules thanks to hybrid approaches. Prototype tooling made from aluminum or printed inserts can produce thousands of parts before requiring replacement. In high-volume contexts, hardened steel molds still dominate—but early iterations can now be validated much sooner in the product development lifecycle.
Metal Part Production Reimagined
Sand casting has long served as the workhorse of low-cost, low-volume metal part manufacturing. Its flexibility allows for the use of inexpensive patterns made from CNC-cut foam or composite materials. Core boxes, risers, and follow boards can be fabricated in under two weeks, providing a scalable option for parts ranging from marine fittings to industrial housings.
For higher fidelity applications, investment casting (also known as lost-wax casting) delivers exceptional surface finishes and tolerance control. Engineers can skip wax tooling entirely by directly printing burnout patterns in castable resins. This method is now standard for turbine components and surgical implants where precision is critical.
Thermoforming and Composite Molds
Vacuum forming and thermoforming introduce a powerful alternative for large, lightweight components. Aluminum molds with porous surfaces can produce over 100,000 parts and handle sheet plastics up to 12 feet in length. This method excels in packaging, panels, and enclosures using polymers like ABS and polycarbonate.
Composite molds, made from carbon fiber or fiberglass, bring the advantages of strength-to-weight ratio and design complexity. These molds accommodate features like vacuum ports and soluble cores, enabling the creation of lightweight, hollow parts with high heat resistance. In motorsports, aerospace, and advanced marine manufacturing, composite tooling is now a first-line choice.
Automation and Intelligent Fixtures
The growing integration of automation in manufacturing has placed a premium on adaptable tooling. Robotic arm end effectors—custom-designed for specific part geometries—are increasingly fabricated from nylon composites and carbon fiber. These materials reduce mass and inertia, improving cycle time and reducing energy consumption. The tools themselves can include features like vacuum channels and modular mounts to enhance versatility and durability.
Similarly, jigs, clamps, and fixtures used in quality control and post-processing can be produced rapidly using CAD-based workflows and additive manufacturing. Instead of relying on generic off-the-shelf tooling, engineers can create bespoke supports that increase repeatability and reduce operator error.
Packaging Gets an Upgrade
Molded paper pulp tools offer an eco-conscious tooling alternative, particularly in the packaging sector. These tools, made using cast patterns or additive molds, are highly accurate and cost-effective. Prototype tools often double as production-grade molds, suitable for tens of thousands of parts. Their rapid turnaround makes them ideal for market testing, short-run packaging, or production scaling.
Engineering Trade-Offs: Performance, Speed, and Cost
While every tooling method comes with limitations, the comparative advantages of rapid tooling are now quantifiable. Epoxy molds can be produced in three days and reused for 20 to 100 parts. Aluminum injection molds support tens of thousands of units, while advanced steel tools can exceed 500,000 cycles. Vacuum-formed and composite molds serve distinct niches where part size, geometry, or thermal performance dictate the method.
Critically, the decision is no longer binary. Hybrid strategies—such as using rapid tools for design validation before investing in hardened dies—allow engineers to strike the right balance between speed, cost, and longevity.
Impact on Lean Manufacturing and Industry 4.0
The broader implications are profound. Rapid tooling facilitates just-in-time production, reduces reliance on warehousing, and enables mass customization. This dovetails with lean manufacturing principles and supports sustainability by minimizing waste and tooling obsolescence.
Moreover, when integrated into digital manufacturing ecosystems, rapid tooling becomes part of a closed-loop system where CAD models feed directly into production, with automated feedback and traceability. This digital thread is essential to realizing the promise of Industry 4.0.
Looking Forward
Pattern and tool making is no longer a bottleneck—it’s a lever for strategic advantage. Companies that can iterate faster, adapt tooling to market demand, and deploy high-performance parts with minimal delay will dominate their sectors.
Whether through epoxy casting, robotic end effectors, or sheet metal hydroforming, rapid tooling has transcended its role as a prototyping shortcut. It is now a primary mode of production engineering.
Engineering the Future, Faster
