Introduction
When most people think of 40G optical modules, they picture data center interconnects running a few kilometers at most. But the 40GBASE-ZR4 takes things much further. Designed to reach up to 80 kilometers over single-mode fiber, it’s built for carriers, metro networks, and long-haul backbones where stability and performance can’t be compromised. It pushes the boundaries of 40G technology while keeping compatibility with existing QSFP+ hardware.
What Makes 40GBASE-ZR4 Different

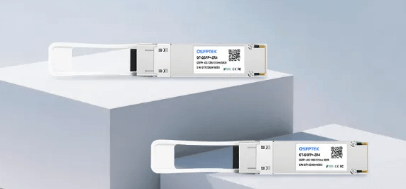

The 40GBASE-ZR4 module operates on the same QSFP+ form factor as the LR4 but uses a more powerful optical transmitter and more sensitive receiver. It runs four wavelengths—1271 nm, 1291 nm, 1311 nm, and 1331 nm—just like LR4, but with higher optical output power and advanced dispersion compensation. This allows it to carry 40G traffic over distances up to 80 km on standard G.652 single-mode fiber.
It’s compliant with OTU3 and Ethernet standards, which makes it easy to integrate with existing DWDM or CWDM systems. Many network operators use ZR4 modules for direct point-to-point connections between core routers, bypassing the need for costly transponders.
Where It Fits in Real Deployments
You’ll often find 40GBASE-ZR4 modules in carrier-grade environments, metro transport systems, and cross-city data center links. For enterprises or service providers that already have 10G infrastructure, the 40GBASE-ZR4 offers a straightforward path to higher capacity without re-cabling the network. It’s also suitable for government or financial institutions that need dedicated, long-distance fiber connections with minimal latency and high reliability.
Advantages of 40GBASE-ZR4
- Ultra-long reach: Up to 80 km over SMF without additional amplification.
- Stable signal quality: Designed for low bit error rate even over long distances.
- Wide compatibility: Works with standard QSFP+ ports and Ethernet switches.
- Simplified network design: Eliminates the need for OTN gear in many cases.
- Lower operational costs: Reduced need for intermediate equipment.
While the initial investment in ZR4 modules might be higher, the overall system cost is often lower when you factor in reduced complexity, fewer intermediate amplifiers, and simplified maintenance.
Why 40GBASE-ZR4 Still Matters
Some might argue that 100G has already replaced 40G, but the reality is that many regional and enterprise networks still rely on 40G due to cost and compatibility reasons. The ZR4 brings new life to the 40G standard by extending its reach to 80 km—enough to cover most metropolitan areas.
It’s especially useful for backup and disaster recovery connections where latency, cost, and reliability must be balanced. Many operators also use ZR4 for connecting secondary data centers that are too far for LR4 but don’t justify the jump to 100G.
See also: Choosing the Right Lead Generation Agency for Your Business Needs
Installation and Performance Considerations
Before deploying, engineers should check optical power budgets carefully. ZR4 modules transmit at higher power levels, so inline attenuators may be needed for short fiber runs. It’s also important to monitor chromatic dispersion and optical return loss for long-haul performance.
Routine optical cleaning and link testing ensure optimal results. When properly installed, 40GBASE-ZR4 modules can operate continuously with minimal maintenance for years.
Conclusion
The 40GBASE-ZR4 optical module extends the lifespan of 40G networking by bridging vast distances once considered impractical for this data rate. It’s the perfect solution for long-haul, point-to-point connections where 100G may be too costly. With its mix of distance, efficiency, and reliability, ZR4 proves that 40G technology still has a place in modern high-performance networks.
