Understanding the Parts of the Tower Crane: A Deep Dive into Vertical Construction Machinery

Tower cranes are among the most essential and powerful machines on modern construction sites, particularly in the construction of high-rise buildings and large infrastructure. These towering giants dominate urban skylines with their long horizontal arms and upright steel masts. However, few people outside the engineering or construction world fully grasp the complexity and engineering brilliance behind these machines. This article provides a detailed exploration of the parts of the tower crane emphasizing their functions, construction, and significance in safe and efficient operations.

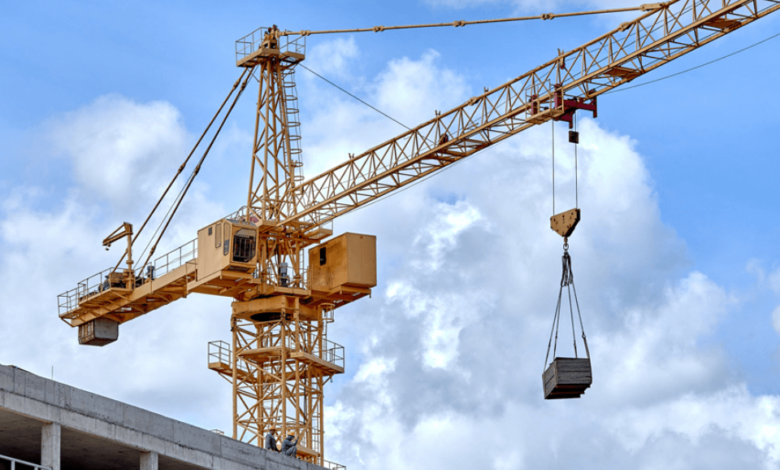

What is a Tower Crane?

Before we break down its components, it’s important to understand what a tower crane is. It provides excellent lifting height and capacity, making it ideal for constructing tall buildings. Its unique structure includes a combination of vertical and horizontal elements that work together to move heavy loads both vertically and horizontally.

See also: Top Luxury Car Rental Options in Dubai for Business Travelers

1. The Base (Foundation)

• Purpose: The base supports the entire crane.
• Details: Usually bolted into a massive concrete pad, the base ensures stability. It is designed to handle not only the crane’s own weight but also the dynamic forces produced during lifting.

2. Mast (Tower Section)

• Purpose: Provides height and structural support.
• Details: Made of steel lattice sections, the mast is assembled vertically and can be extended as needed.

3. Slewing Unit

• Purpose: Enables rotation of the crane.
• Details: Mounted on top of the mast, the slewing unit allows the jib and counter jib to rotate 360 degrees. This part contains slewing rings, motors, and brakes.

4. Jib (Working Arm)

• Purpose: Supports and moves loads horizontally.

5. Counter Jib

• Purpose: Balances the weight of the jib.

8. Hook Block

• Purpose: Lifts and secures the load.
• Details: Attached to the wire rope, the hook holds and releases materials being lifted. High-tensile steel hooks ensure durability and safety.

Secondary and Safety Parts of the Tower Crane

Besides the main structural and operational components, there are many smaller parts that contribute to the safe and efficient use of the crane.

Safety and Monitoring Components:

• Limit Switches: Prevent movement beyond safe limits.
• Load Moment Indicator (LMI): Warns the operator when the load is close to maximum capacity.
• Wind Speed Sensor: Shuts down operations in unsafe wind conditions.

Electrical and Control Parts:

• Proximity Sensors: Detect nearby objects to prevent accidents.
• Lighting Systems: Ensure visibility during night operations.

Maintenance of Tower Crane Parts

Regular inspection and maintenance of the parts of the tower crane are vital for safety and longevity.

Daily Inspections:

• Check for cracks, rust, or loose bolts.
• Test all control systems and emergency stops.
• Monitor fluid levels in winches and brakes.

Weekly/Monthly Checks:

• Inspect wire ropes for wear.
• Lubricate gears and bearings.
• Examine anchor bolts and tower sections.

Proper maintenance extends the crane’s life and minimizes downtime, especially in demanding construction environments.

Innovations in Tower Crane Components

Modern cranes are increasingly adopting smart technology:

• Automated Trolley Positioning: Reduces human error and increases accuracy.
• Energy-Efficient Motors: Lower electricity consumption.
• Modular Parts: Faster assembly and disassembly.

These innovations not only improve productivity but also enhance the safety of operators and workers on-site.

Conclusion: Why Every Part Matters

Understanding the parts of the tower crane is essential for those involved in construction planning, machinery operation, and site safety. Each part, from the massive mast to the smallest limit switch, plays a crucial role in the overall function and security of the crane.

Proper selection, installation, and maintenance of these parts not only ensure the success of lifting operations but also protect lives and reduce project delays. As construction projects grow more complex, the engineering behind tower cranes continues to evolve — and with it, the importance of knowing what each part does and how it contributes to the towering marvels we see on our city skylines.
